Prekės aprašymas
*Nuotraukos pateikiamos tik iliustraciniais tikslais. Pateikta informacija gali skirtis priklausomai nuo regiono ar šalies.
Bendra informacija

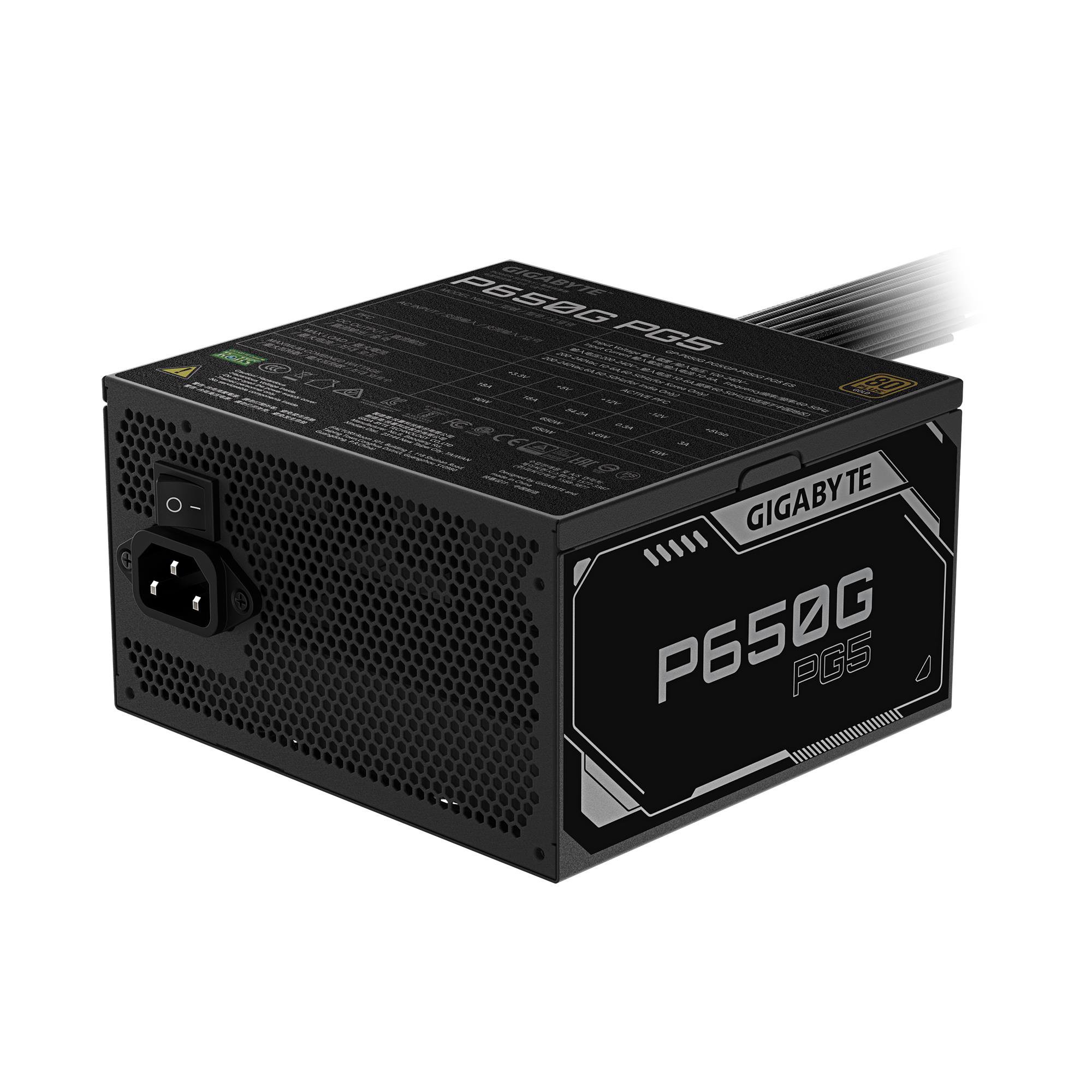

GIGABYTE P650G PCIE 5.1 maitinimo blokas 650 W 20+4 pin ATX ATX Juoda
Slide 1 of 5
Brand:
GIGABYTE
Produkto pavadinimas:
P650G PCIE 5.1
Prekės kodas:
GP-P650G PG5 EU
EAN/UPC kodas:
4719331556785
- 650 W 100 - 240 V 50/60 Hz
- Motininės plokštės maitinimo jungtis: 20+4 pin ATX
- PC ATX 80 PLUS Gold
- Aktyvus 12 cm
- Juoda
Specifikacijos
Energijos valdymas
Bendroji galia
The total power that is needed by the device
650 W
AC įėjimo įtampa
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
AC įėjimo dažnis
The range of alternating current frequencies the device can accept from the power source, measured in hertz (e.g., 45 - 65).
50/60 Hz
Įvesties srovė
The amount of electrical current drawn by the device during operation, typically measured in amperes (A) or milliamperes (mA).
10 - 6 A
Didžiausia įėjimo srovė (esant 110 V)
The maximum electrical current the device draws from the power source when operated at a voltage of 110V, measured in amperes.
10 A
Didžiausia įėjimo srovė (esant 220 V)
The maximum amount of electrical current the device draws from the power source when operated at 220V, measured in A.
6 A
Galios koeficiento pataisos (PFC) tipas
Specifies the method used by the power supply unit to improve the efficiency of power delivery and reduce harmonic distortion, such as Active or Passive PFC.
Aktyvus
Kompleksinė galia (+3,3 V)
The total power output available on the +3.3V rail, measured in W.
90 W
Kompleksinė galia (+12 V)
The total maximum power output available across all +12V rails, measured in W.
650 W
Kompleksinė galia (+5V)
The total maximum power output available on the +5V rail, measured in W.
650 W
Kompleksinė galia (–12 V)
The maximum total power that can be delivered on the -12V rail, measured in W.
3,6 W
Kompleksinė galia (+5 VSB)
The total maximum power output available across the combined +5V and +5Vsb rails, measured in W.
15 W
Didžiausia išėjimo įtampa (+3,3 V)
The maximum electrical current that can be delivered on the +3.3V rail, measured in A.
18 A
Didžiausia išėjimo įtampa (+12 V)
The maximum electrical current that the device can provide on the +12V rail, measured in A.
54,2 A
Didžiausia išėjimo įtampa (+5 V)
The maximum electrical current that can be delivered on the +5V rail, measured in A.
18 A
Didžiausia išėjimo įtampa (–12 V)
The maximum electrical current that can be delivered on the -12V rail, measured in A.
0,3 A
Didžiausia išėjimo įtampa (+12 VSB)
The maximum electrical current that can be delivered on the +5Vsb standby rail, measured in A.
18 A
Teisingo signalo delsos diapazonas
The time interval between the output voltages reaching their required levels and the assertion of the power good signal, measured in ms.
100 - 150 ms
Maitinimo apsaugos ypatybės
Features that protect the device against power problems e.g. overload.
Viršijus galią, Persikrovimas, Trumpasis jungimas, Minimaliosios įtampos apsauga
Ryšys
Motininės plokštės maitinimo jungtis
The way in which the motherboard is connected to the power supply.
20+4 pin ATX
Motininės plokštės maitinimo kabelio ilgis
The total length of the cable used to provide power to the motherboard, measured in mm.
60 cm
SATA elektros jungčių skaičius
The total number of available power interfaces designed to provide electricity to SATA-compatible drives or peripherals.
6
SATA maitinimo kabelio ilgis
The total length of the SATA power cable, measured in mm (e.g., 550).
120, 500 mm
Periferinė (Molex) galios jungtis (4-pin)
White 4-pinned connector used to connect a peripheral to the power supply.
3
Periferinio („Molex“) maitinimo kabelio ilgis
The total length of the peripheral power cable using a Molex connector, measured in mm (e.g., 450).
150 mm
PCI „Express“ maitinimo jungtys (6 + 2 kontaktai)
The number of 6+2 pin power connectors available to provide dedicated power to high-performance expansion cards.
2
PCI „Express“ galia kabelio ilgis
The total length of the PCI Express power cable, measured in mm.
50 cm
CPU P4 jungtis (4 kontaktai)
The number of 4-pin power connectors available to provide dedicated power to the processor.
1
CPU maitinimo jungtis (4 + 4 kaisčiai)
Indicates whether the product includes or supports a 4+4 pin power connector for the central processing unit.
Ryšys
CPU maitinimo laido ilgis
The total length of the cable used to provide power to the processor, measured in mm.
60 cm
ATX maitinimo jungtis (20 + 4 kaisčiai)
Indicates whether the product includes or supports a 20+4 pin ATX power connector.
Floppy diskelio disko jungtis
Indicates whether the product has a dedicated power or data interface for connecting a 3.5" floppy disk drive.
Perdavimo laidu tipas
Specifies the design of the internal wiring, indicating whether cables are permanently attached or can be removed (e.g. Fully-Modular).
Ne modulinis
Veikimo charakteristikos
Sertifikatas 80 PLUS
The energy efficiency rating, indicating the minimum percentage of power converted from the mains to the device (e.g., 80 PLUS Gold).
80 PLUS Gold
Paskirtis
What the product is used for.
PC
Maitinimo bloko (PSU) formos koeficientas
The physical dimensions and shape standard of the power supply, which determines compatibility with the chassis (e.g., ATX or Flex ATX).
ATX
ATX versija
ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions
3.1
Aušinimo padengimo tipas
The type of mechanism used to reduce friction between moving parts, such as a ball bearing or fluid dynamic bearing (FDB).
HYB
Vidutinis laikas tarp trikčių (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
100000 h
Konstrukcija
Produkto spalva
The colour e.g. red
Juoda
Aušinimo tipas
The method used to cool the device or to cool the air around the device.
Aktyvus
Ventiliatoriaus skersmuo
The size of the fan
12 cm
Ventiliatorių skaičius
The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
1 ventiliatorius(iai / ių)
Ventiliatoriaus vieta
Specifies the physical position of the cooling fan on the unit (e.g. Front, Rear, Side).
Viršus
On/off mygtukas
The button which is pressed to switch the device on or off.
Svoris ir matmenys
Plotis
The measurement or extent of something from side to side.
140 mm
Ilgis
The distance from the front to the back of something.
150 mm
Aukštis
The measurement of the product from head to foot or from base to top.
86 mm
Svoris
Weight of the product without packaging (net weight). If possible
1,76 kg
Pakuotės duomenys
Pakuotės plotis
The distance from one side of the packaging to the other.
260 mm
Pakuotės gylis
The distance from the front to the back of the packaging.
110 mm
Pakuotės aukštis
The distance from the top to the bottom of the packaging.
180 mm
Paketo svoris
Weight of the packaged product.
1,92 kg
Pakuotės tipas
The type of product package e.g. box.
„Box“
Logistikos duomenys
Garantinis laikotarpis
The length of time the manufacturer guarantees the product against defects, typically expressed in months or years.
5 metai
Specifikacija
| Bendrosios charakteristikos: | |||
|---|---|---|---|
| Prekės kodas | 999906079622 | ||
| Barkodas | 4719331556785 | ||
| Gamintojo kodas | GP-P650G PG5 | ||
| Gamintojas | GIGABYTE | ||
| Garantija (mėn.) | 36 | ||
| Papildoma informacija | <p><ul> <li>ATX 3.1 and PCIe Gen 5.1 ready</li> <li>80 PLUS Gold certified</li> <li>Main Japanese capacitors</li> <li>120mm Silent Hydraulic Bearing (HYB) Fan</li> <li>Powerful single +12V rail</li> <li>OVP/OPP/SCP/UVP/OCP/OTP protection</li> <li>Compact design</li> </ul> </p> | ||
